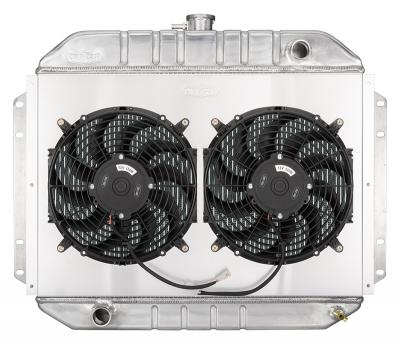

1961-1964 Ford F Series Radiator and Fan Combo for Swaps

1961-1964 Ford F-100 Truck Coyote Swap Aluminum Performance Radiator and Dual 12" Fan Kit. 1.5 inch upper and lower hose ports to match Coyote.

With the popularity of the late model Coyote engine COLD-CASE now makes radiators with the correct hose connections to complete the swap. No adapters or special hoses needed, just connect and go.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• 2 Rows of 1.25 Inch tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/manual trans
• Direct fitment for 61-64 F100
• Old Part Number: RPE577A

Radiator Specs

• Core Height 17.7 Inch
• Core Width 25.9 Inch
• Overall Height 24.5 Inch
• Overall Width 30 Inch brackets
• Overall Thickness 3 Inch
• Upper Hose 1.50 Inch
• Lower Hose 1.50 Inch
• Tubes (2) 1.25 Inch Tubes
